Hormann Replacement PCB for Door Control A445
Technical Support Hotline +44 115 7180691
Only 100% New and Original Parts
Special Prices available for Door Dealers and Resellers. Contact us!
Stocked Products Ship within 24h
Other customers also bought
delivery time: 3-5 working days

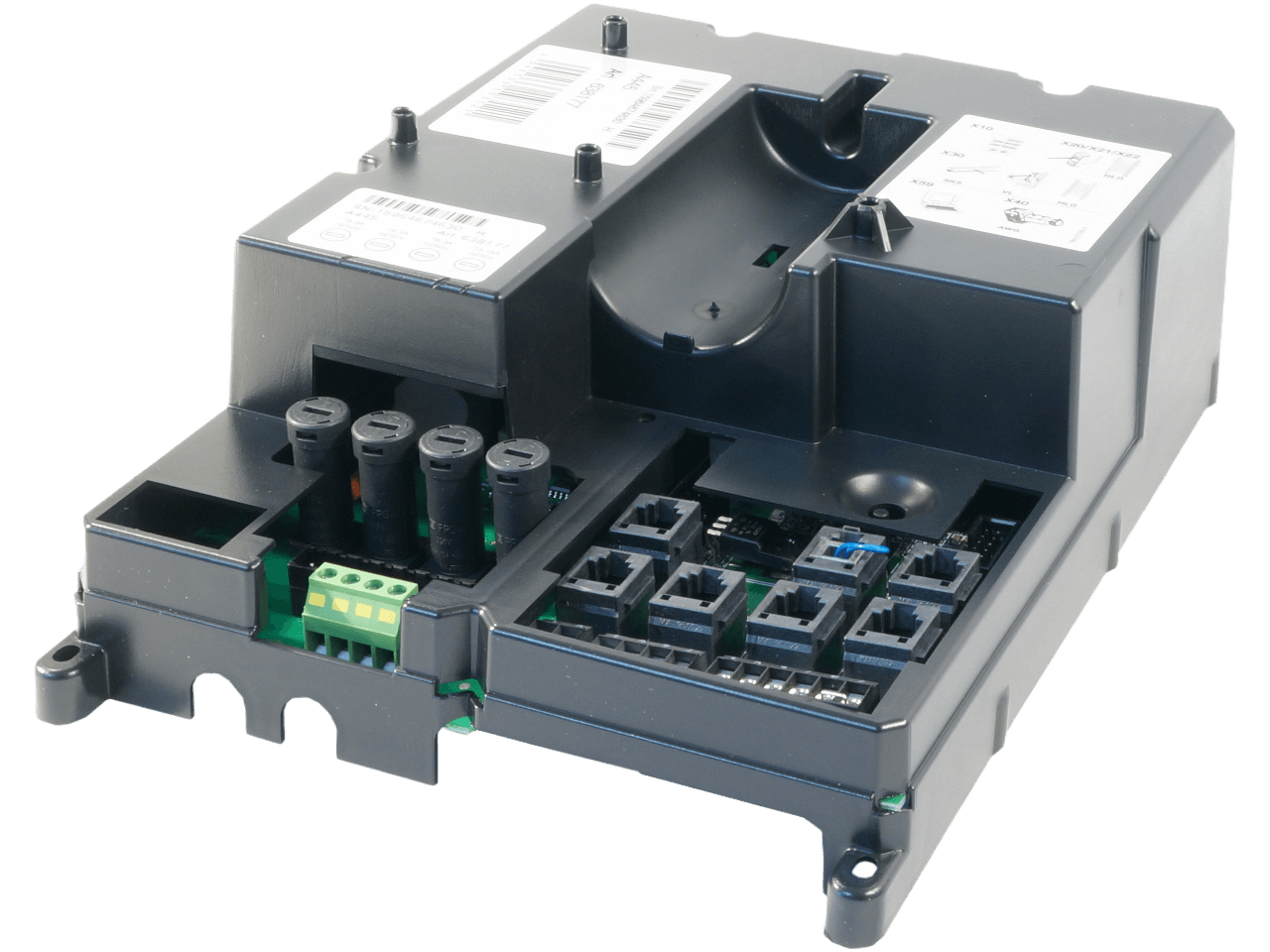

Hormann-Art. No.: 638177, Control unit with base and power supply PCB, A 445, manufacturing date 01.10.2003
Description:

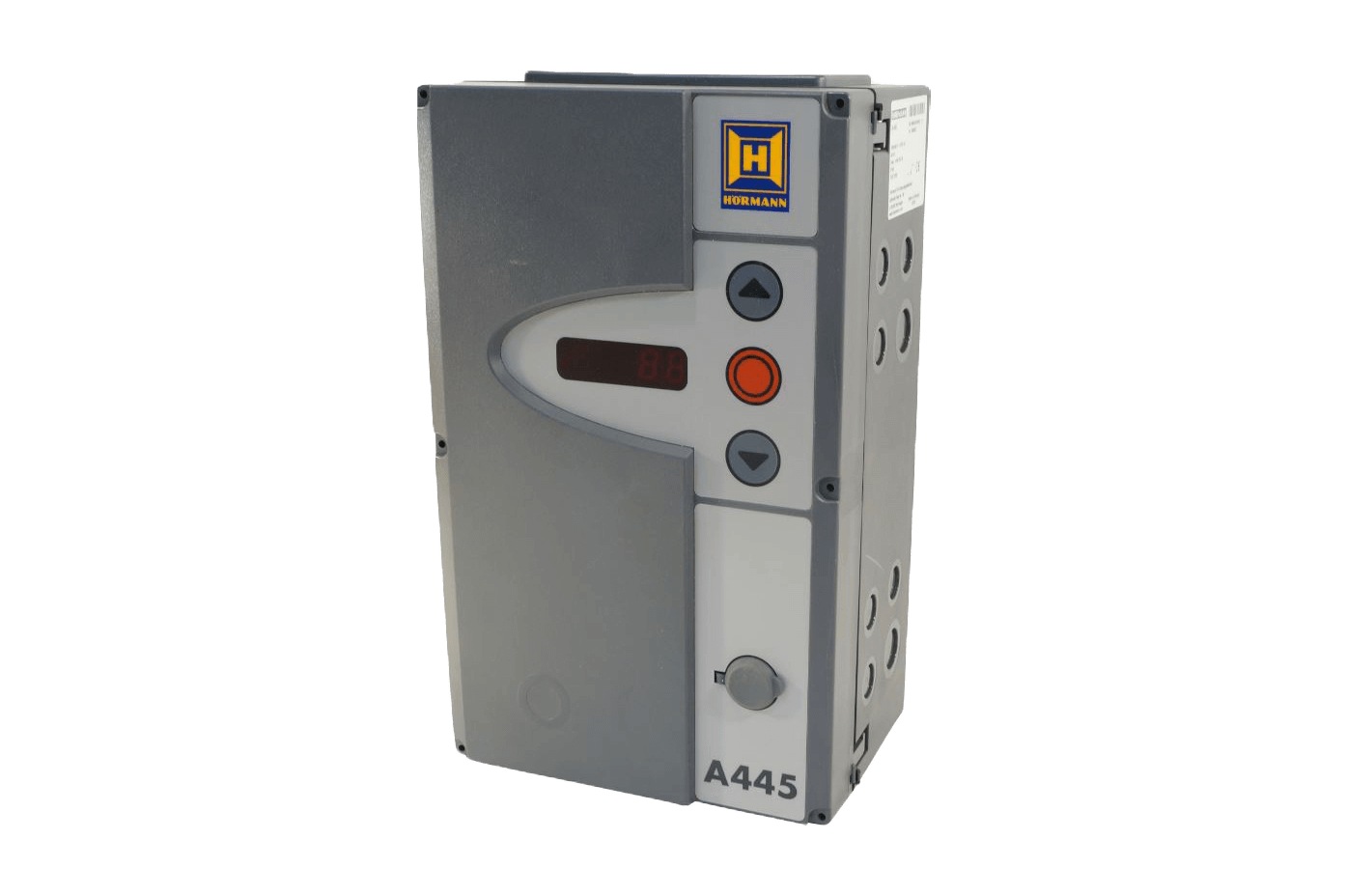

The A445 industrial door control unit from Hörmann is a powerful and reliable control system for industrial doors. With numerous functions and adjustment options, the A445 can be perfectly tailored to individual requirements. Compatible with most industrial door drives by Hörmann, the A445 offers a flexible solution to control and monitor industrial doors. Thanks to its easy operation and numerous functions, it is also ideal for use in smaller industrial companies. This control unit can be mounted separately from the operator.
Features:
- Integrated Open / Stop / Close functions
- Power supply 400 / 230 V
- Connection cable with CEE plug (optional)
- Programming of different door positions with adjustments made directly on the control unit.
- 7-segment display with menu reading from outside (maintenance, cycle, operating hours counter as well as error analysis)
- Pulse counter for monitoring door movements
- Connecting terminals for additional peripheral components
- Optional accessories, like mains switch, etc. available
- IP 65 Protection for use in industrial environments
| Additional Functions: | Lock, Timer-to-Close |
|---|---|
| Max. Operating Temperature: | +60 °C |
| Min. Operating Temperature: | -20 °C |
| Modes of Operation: | Automatic, Hold-to-Run |
| Programmable Relay Contact: | 2 |
| Protection Class: | IP 65 |
| Radio Function: | Optional |
| Sensor Inputs: | Optical Sensing Edges, Photo Eye, Resistive Sensing Edge (8k2) |
| Supply Voltage: | 3N~400 V |
